Lemon tree

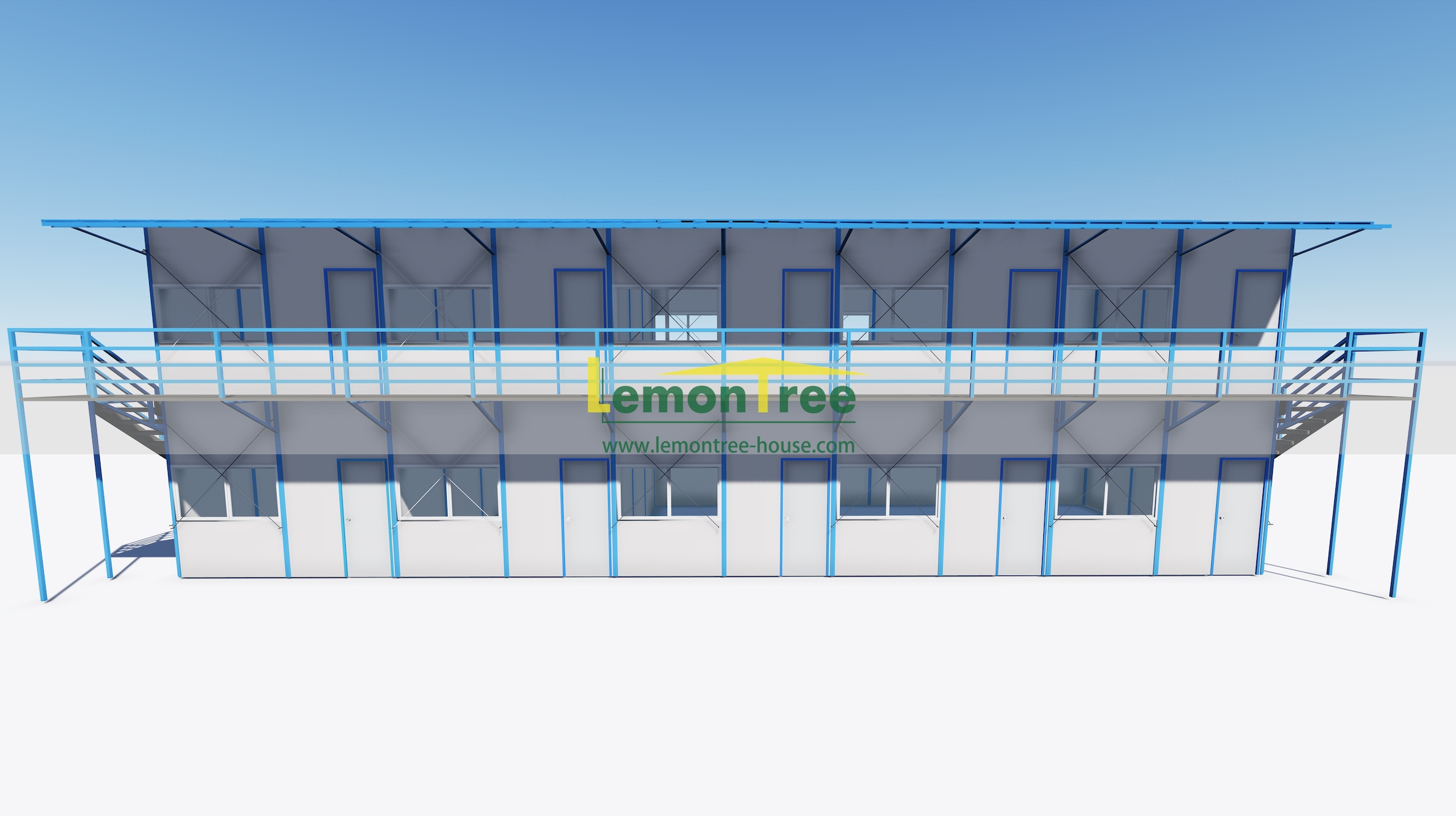

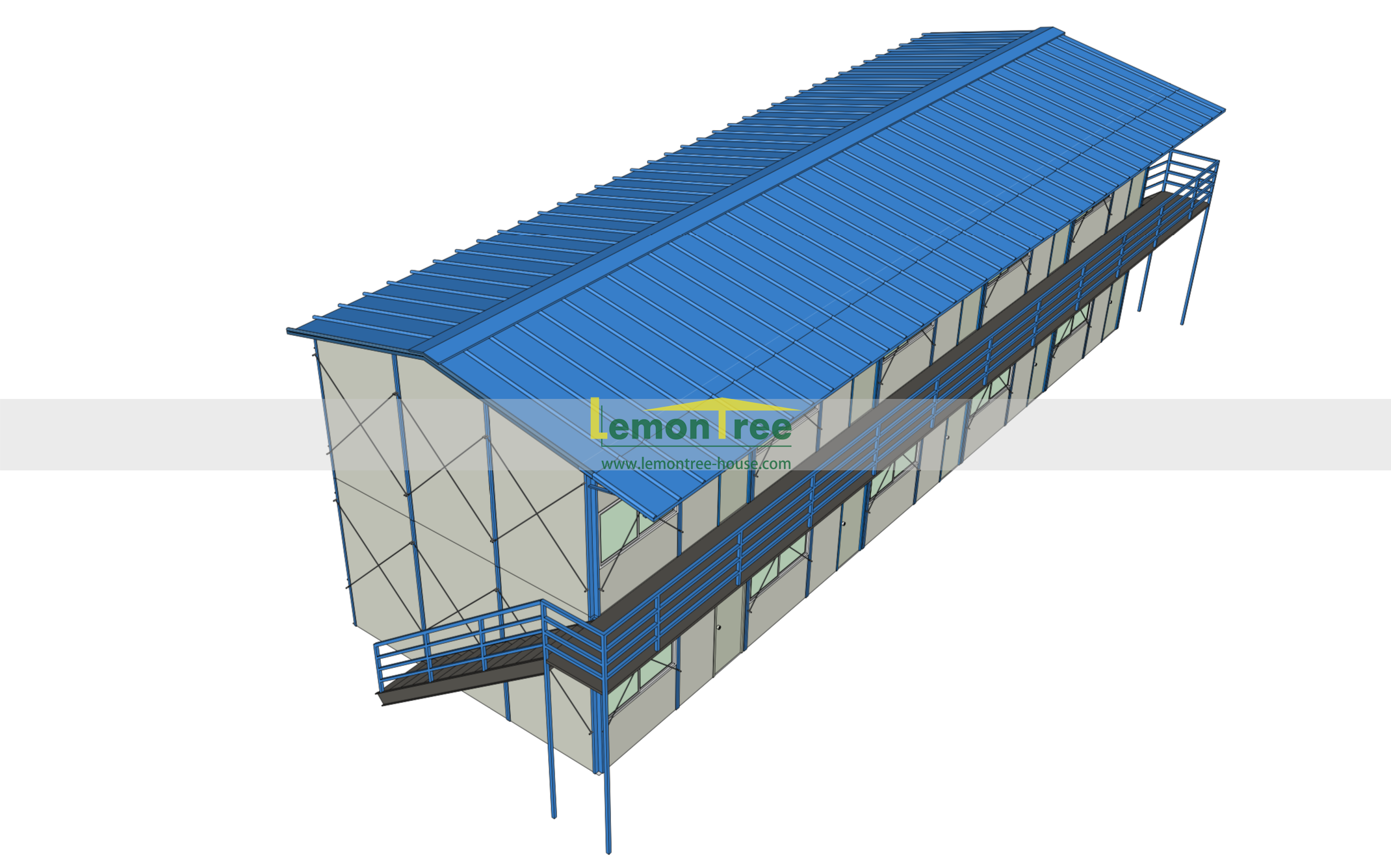

Modular Prefab K House

Modular Prefab K House

Economical living Modular prefab K house

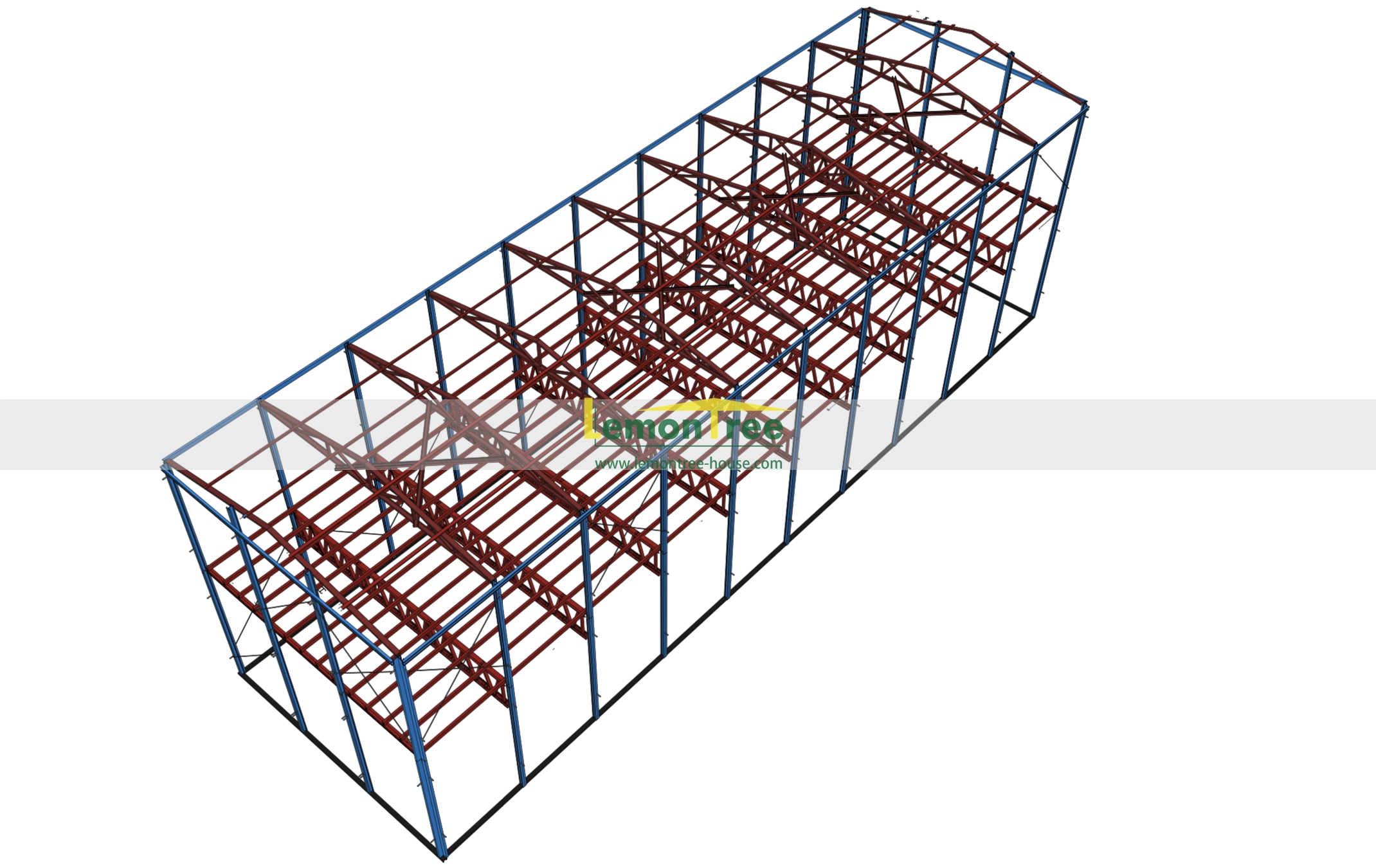

Advantage: Modular K prefab house, adopted light steel framing as its bearing structure, surrounded by sandwich panels of wall and roof. At the basic of design concept of K-house products are universally, standardization and modular, it totally achieved the advantages of temporary buildings such as serialization development, industrialization production, matching supply, assemble & dismantle quickly and many time of reusing. Convenient to installation, with the best cost performance.
Modular Prefab K House
Application: It is widely applied to use as temporary house for engineering camps, government arrangement buildings, large-scale games and commercial events, etc.

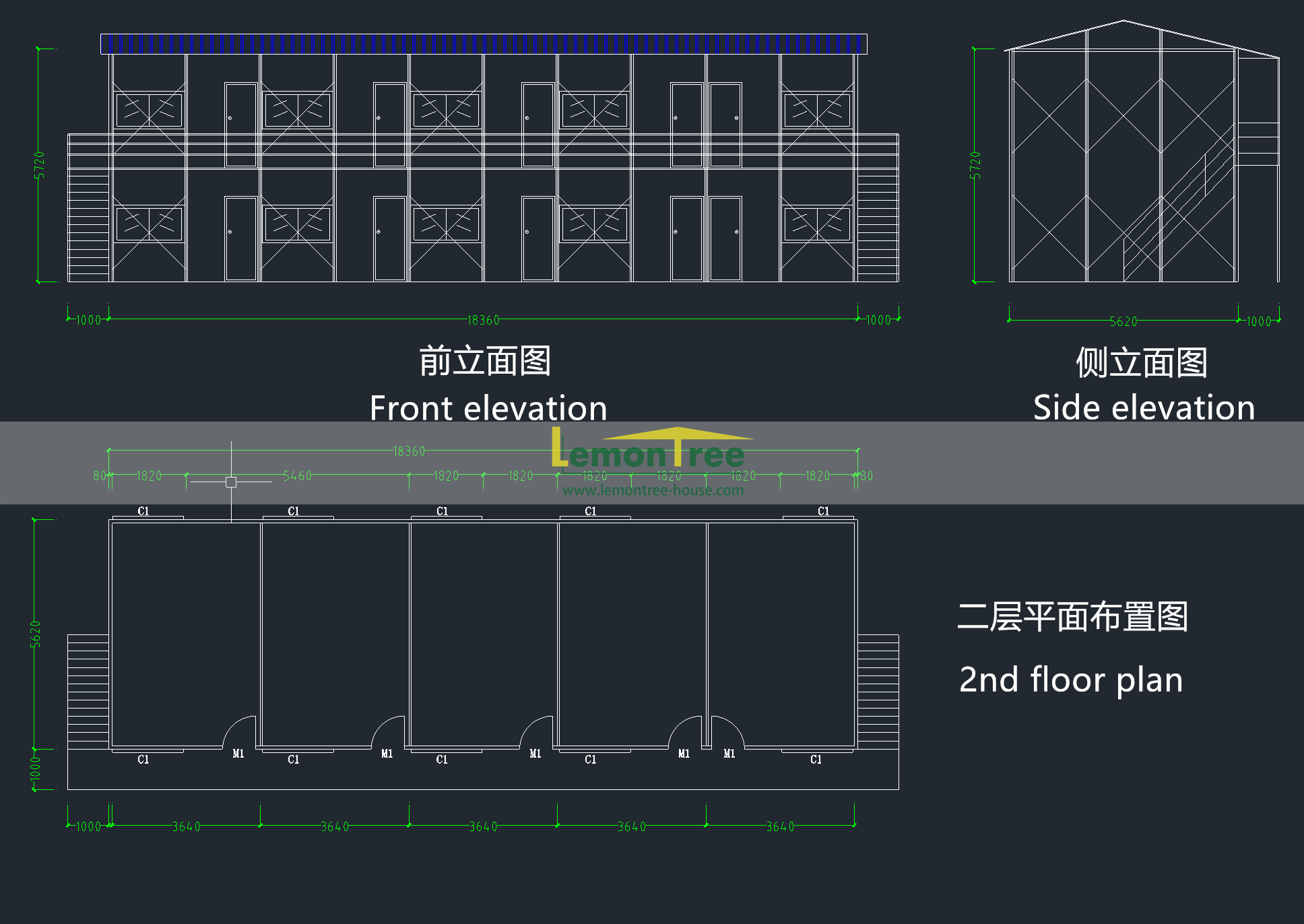

Example

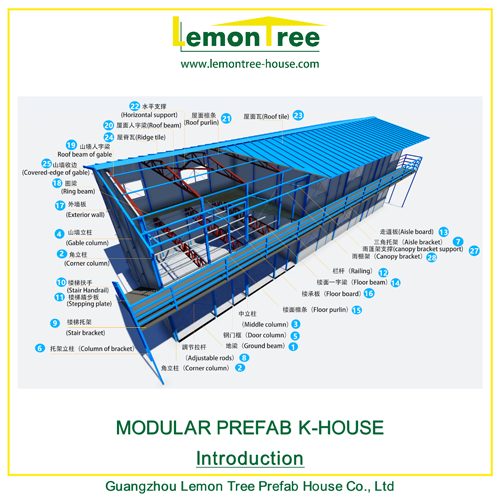

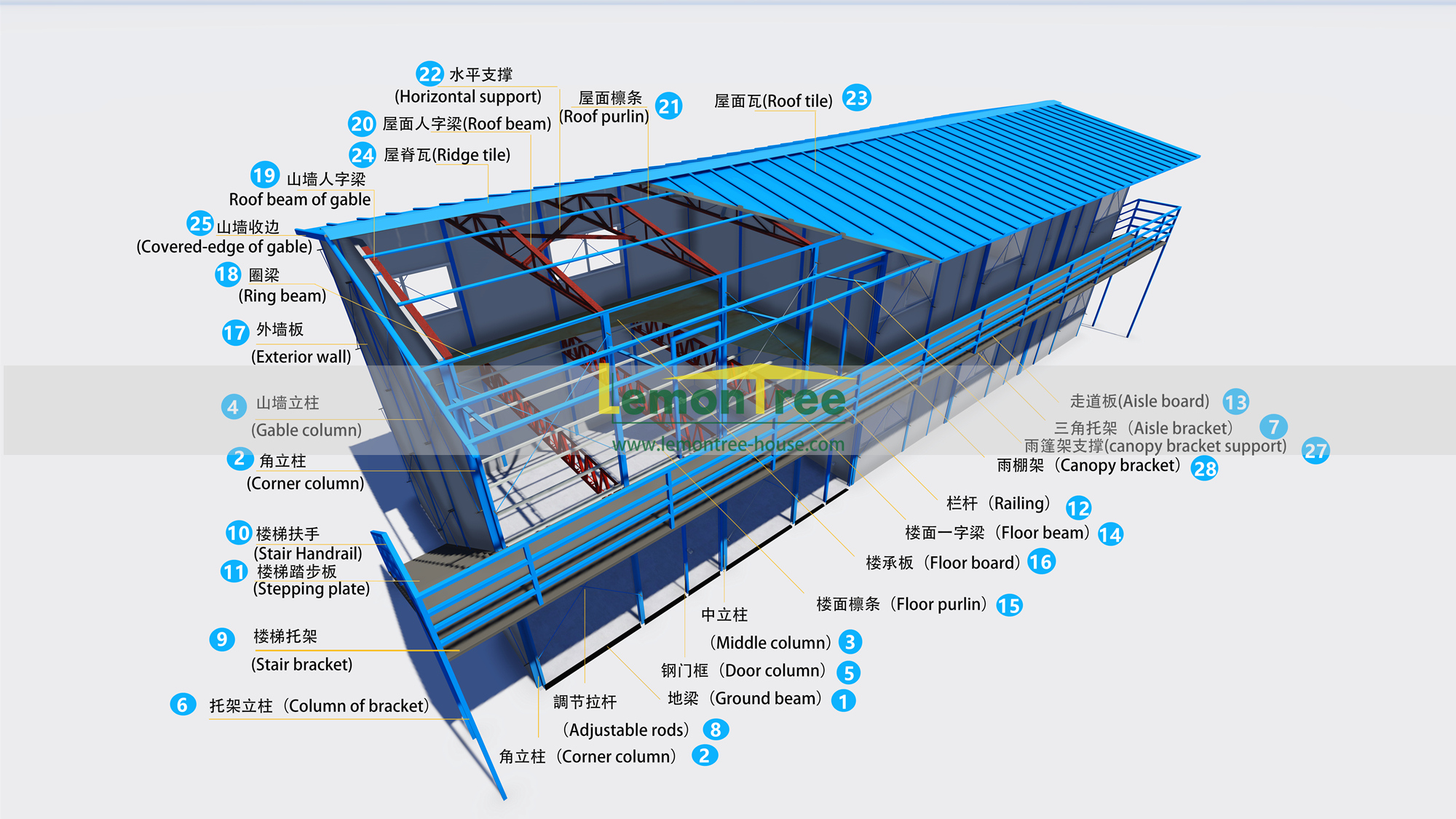

Here is a basic material list for Prefabricated K-house for reference.

1.Stand column: 6P height- C 80x35x14x1.7; Blue powder coating.
2.Roof beam:  C 80x1.3; C 50x30x1.3; Galvanized raw color.
3.Floor beam:  C 80x1.5~1.7; C 50x30x1.3; Galvanized raw color.
4.Ground beam:  C 80x1.5; Blue powder coating.
5.Ring beam: C 80x1.3; Blue powder coating.
6.Horizontal support: L 35x1.7; Blue powder coating.
7.Floor purlin: C 80x1.3; Galvanized raw color.
8.Roof purlin: L 35x1.7; White powder coating.
9.Aisle board: Checked plate 2.3mm thk; Blue powder coating.
10.Staircase: C 160x2.5 & checked plate 2.3mm thk; Blue powder coating.
11.Glass wool sandwich wall panel: 50mm thk; density: 38kg/m³, steel plate thk 0.2mm;
12.Glass wool sandwich tile panel: 50mm thk; density: 35kg/m³, steel plate thk 0.256mm + 0.2mm;
13.Partition slot & Hemming: thk 0.376mm blue color steel.
14.Floor board: thk 15mm plywood.
15.PVC window & Sandwich door.



140x140
140x140

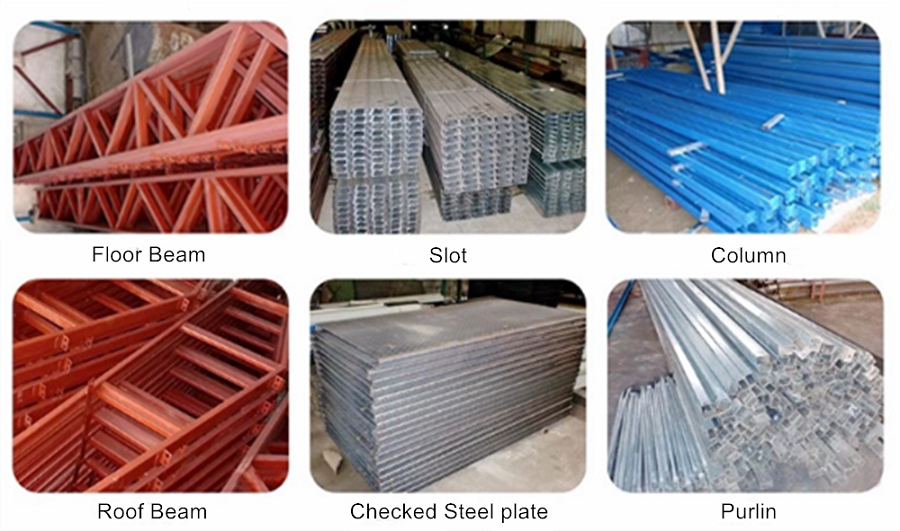

Main materials




Materials for choosing

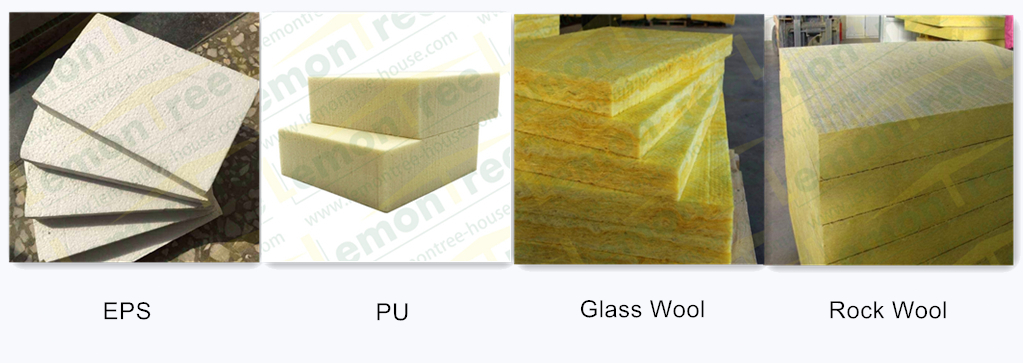

Wall core panel

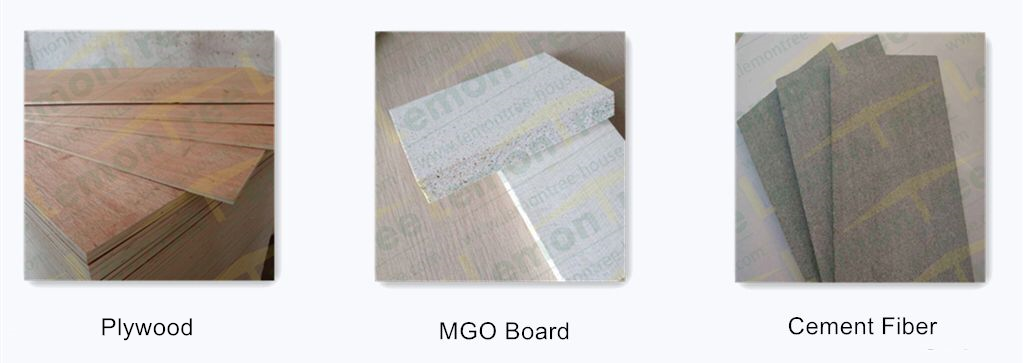

Floor board

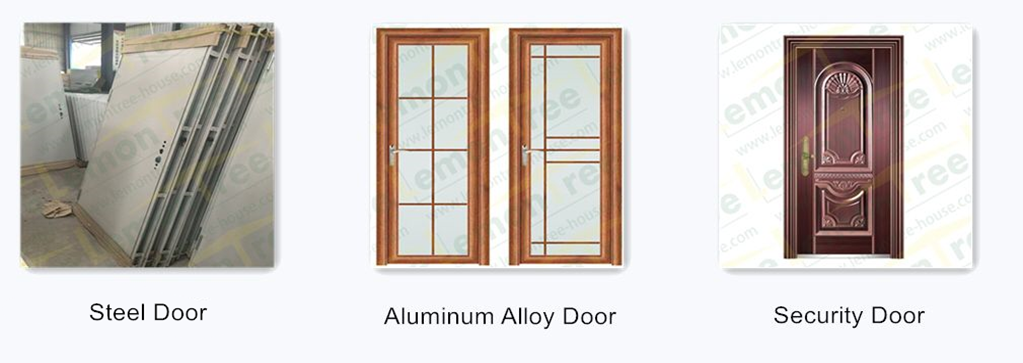

Door

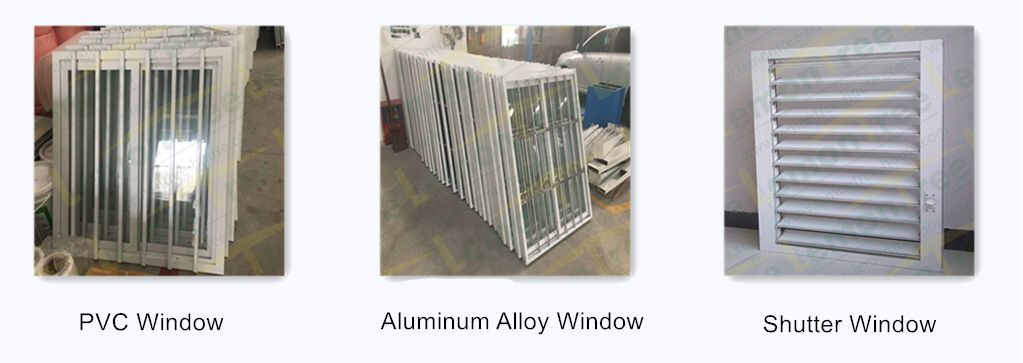

Window

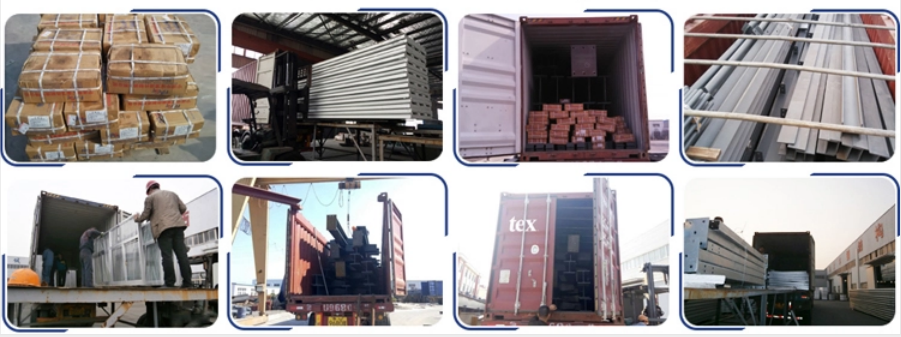

Packing & Deliver



Due to all components of Modular prefab K house are separate, we would pack all the materials and put them in the counter as possible as we can. In general, One 40HQ shipment container can be loaded 200~300 square meters of materials. If you have any requirements about packing, you can communicate with us when ordering.

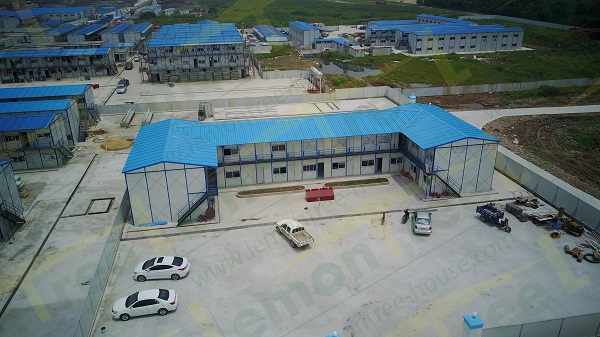

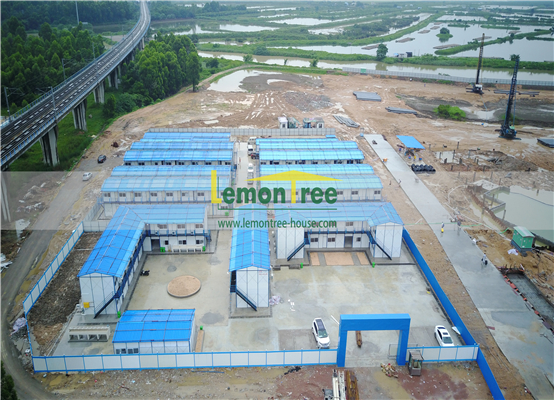

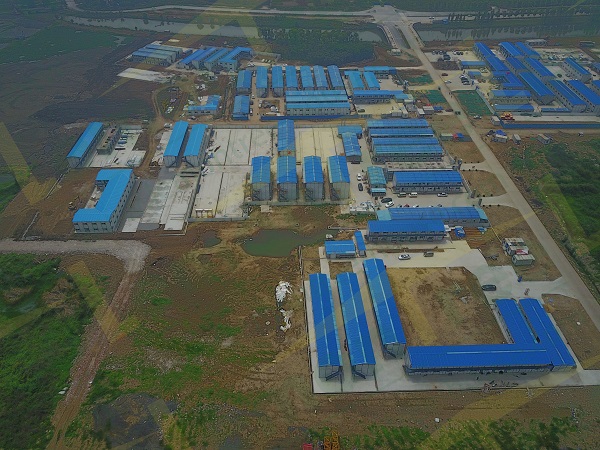

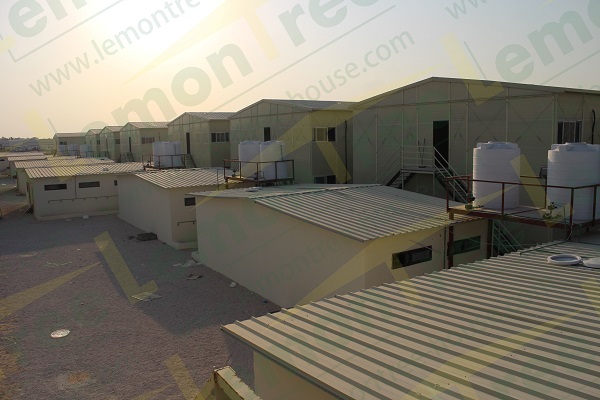

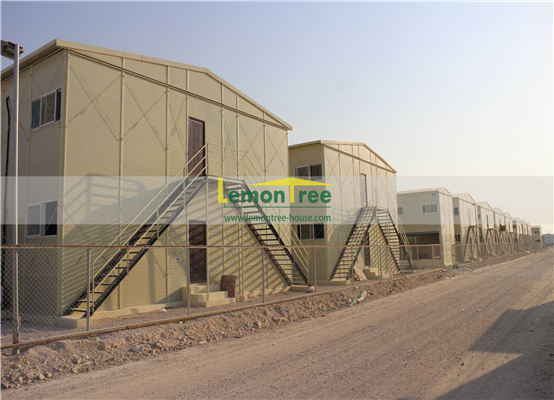

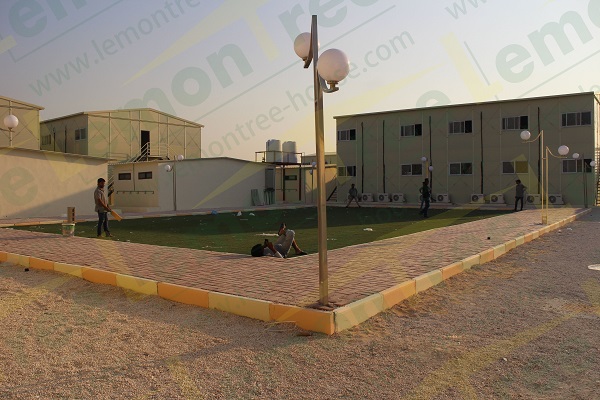

Project Display

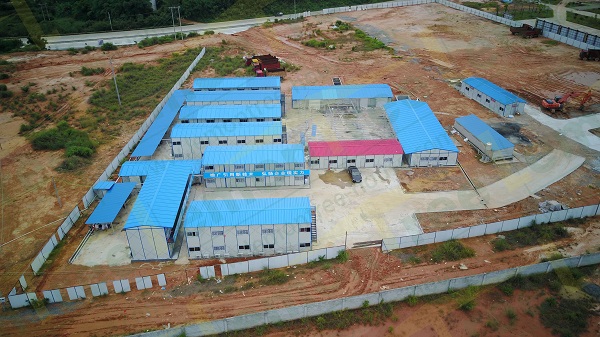

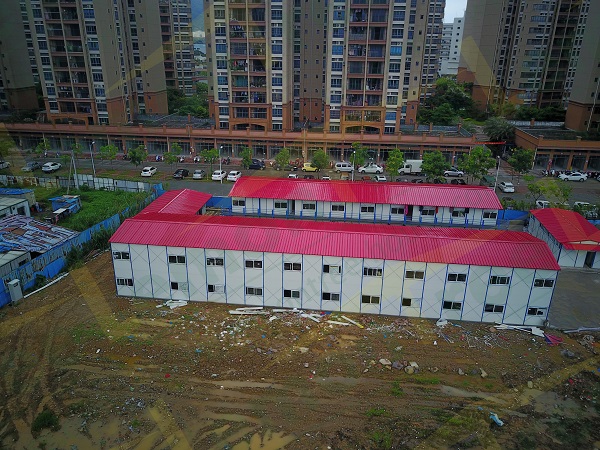

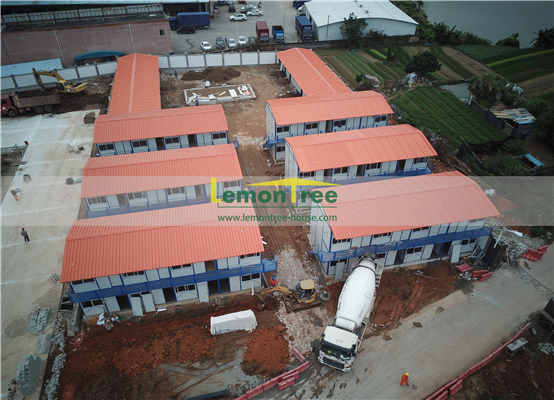

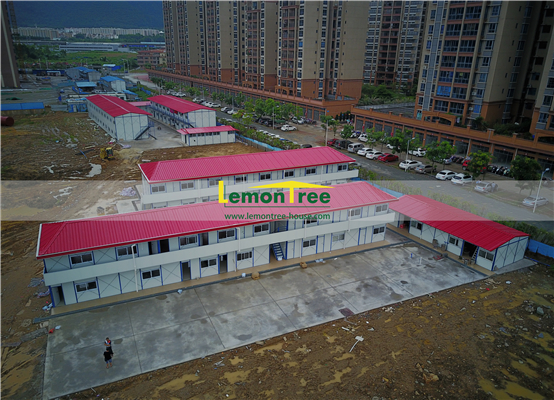

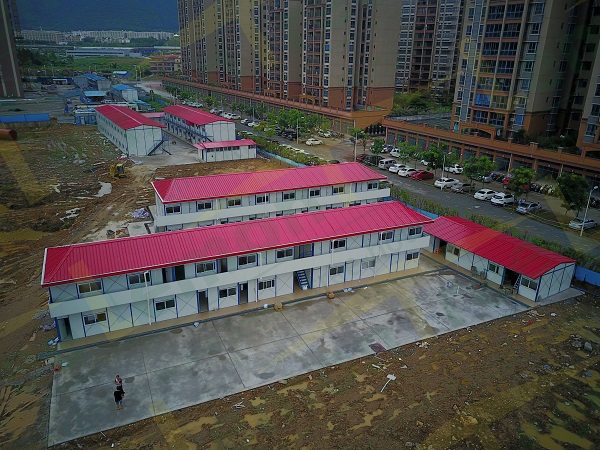

Domestic project



Foreign project

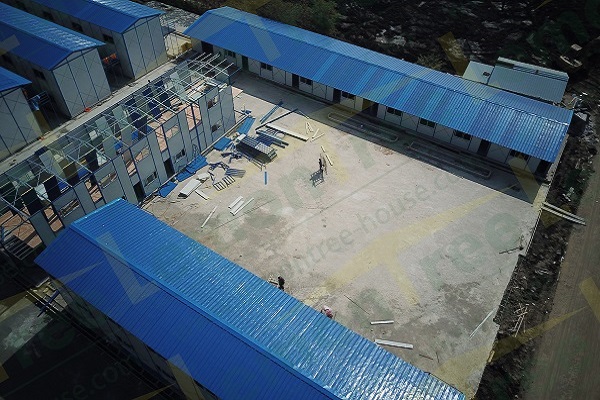

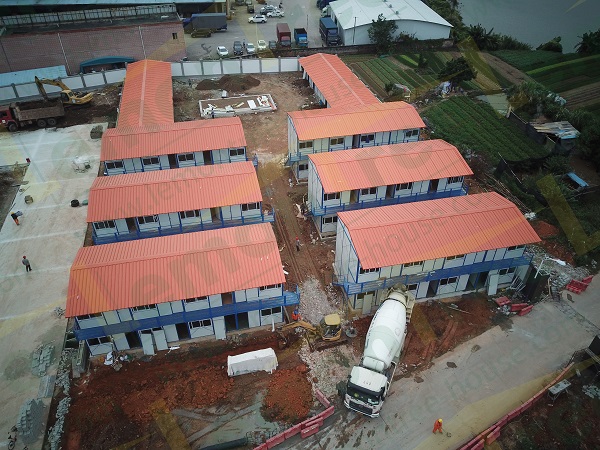

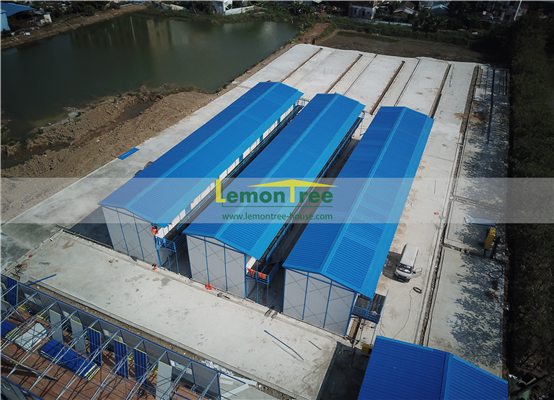

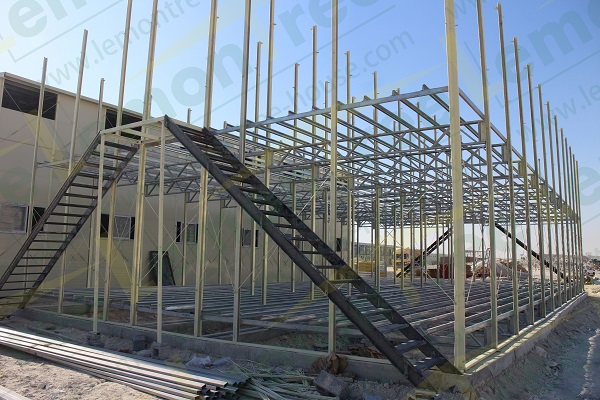

Construction site

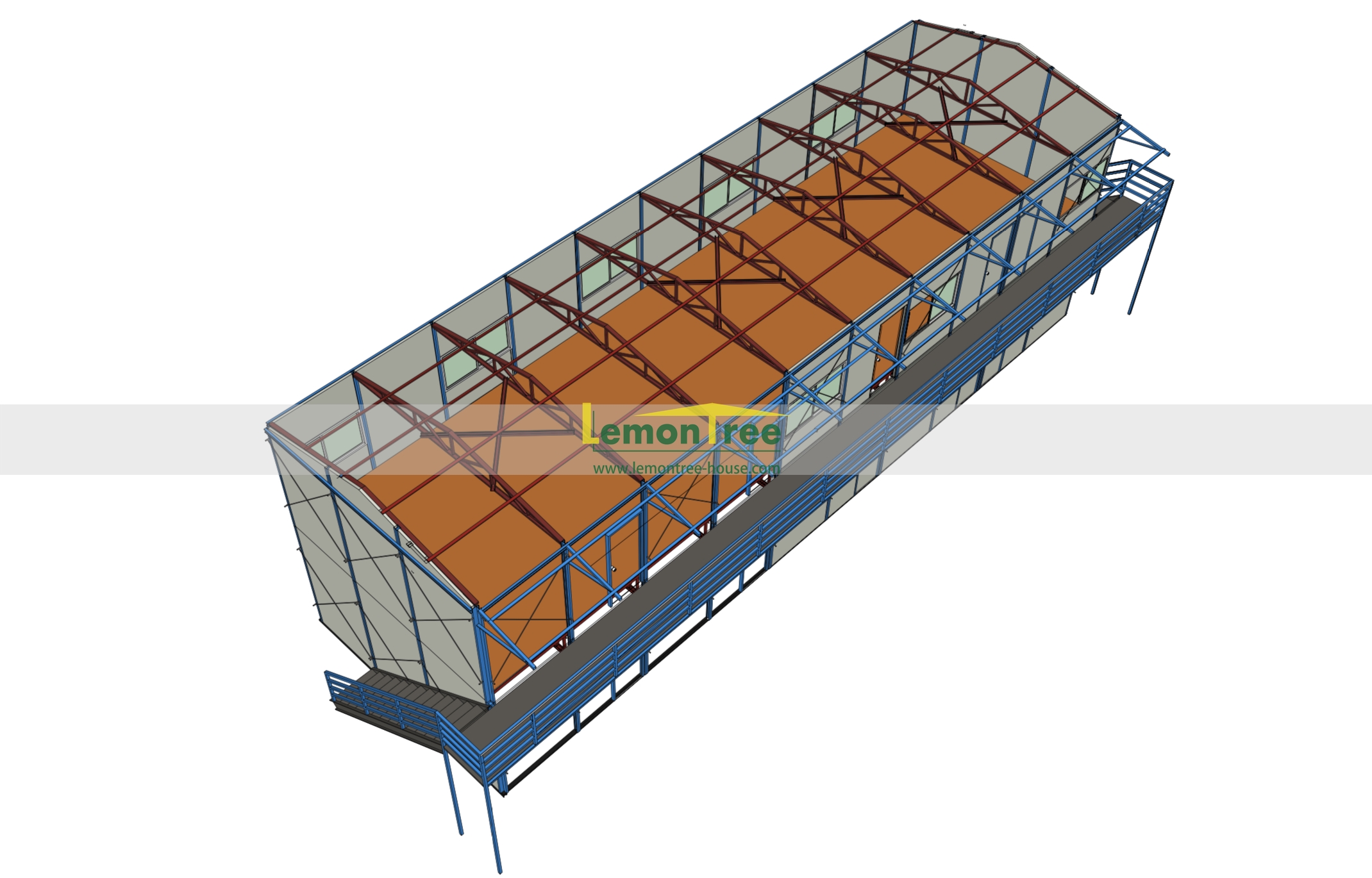

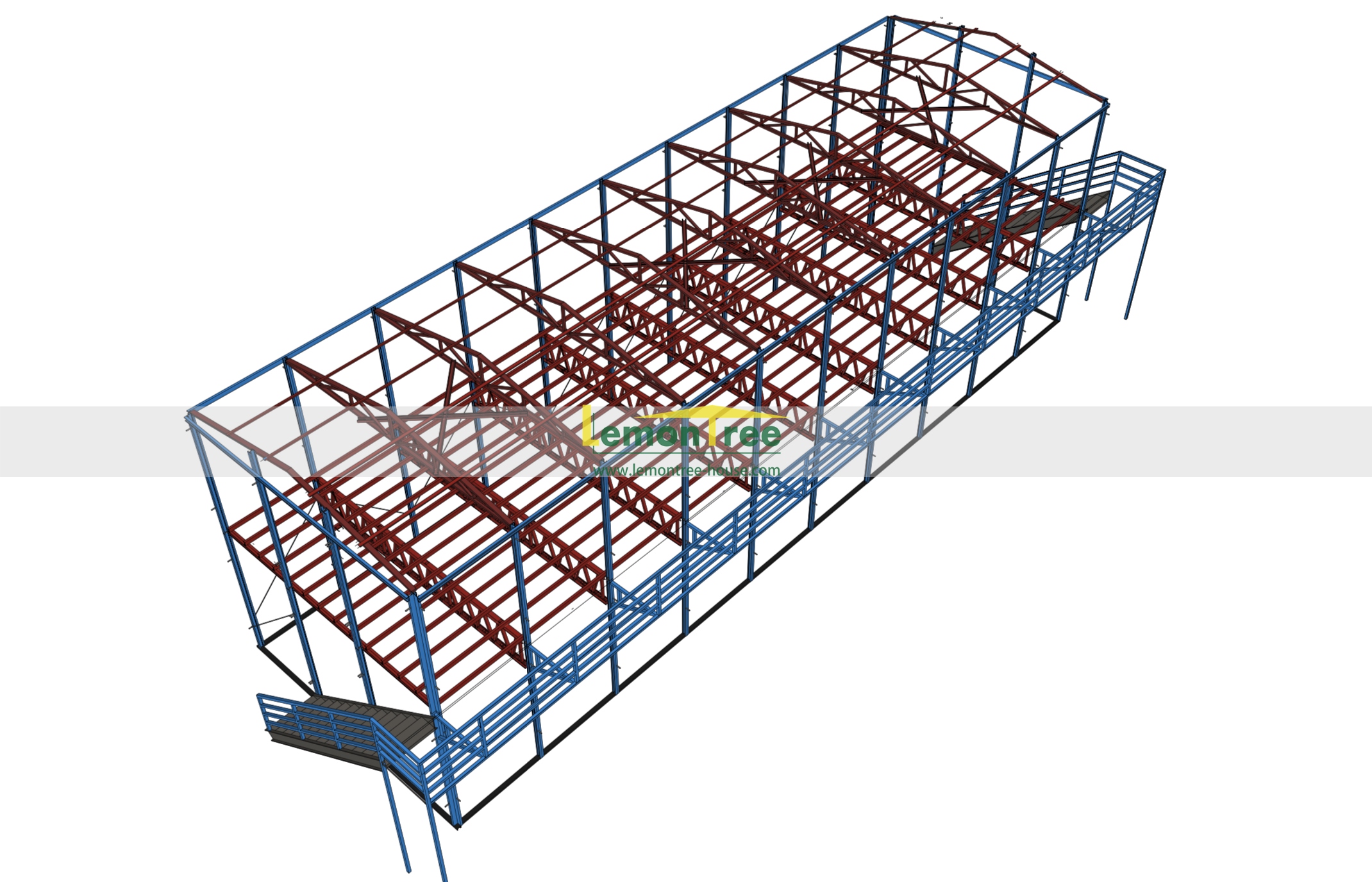

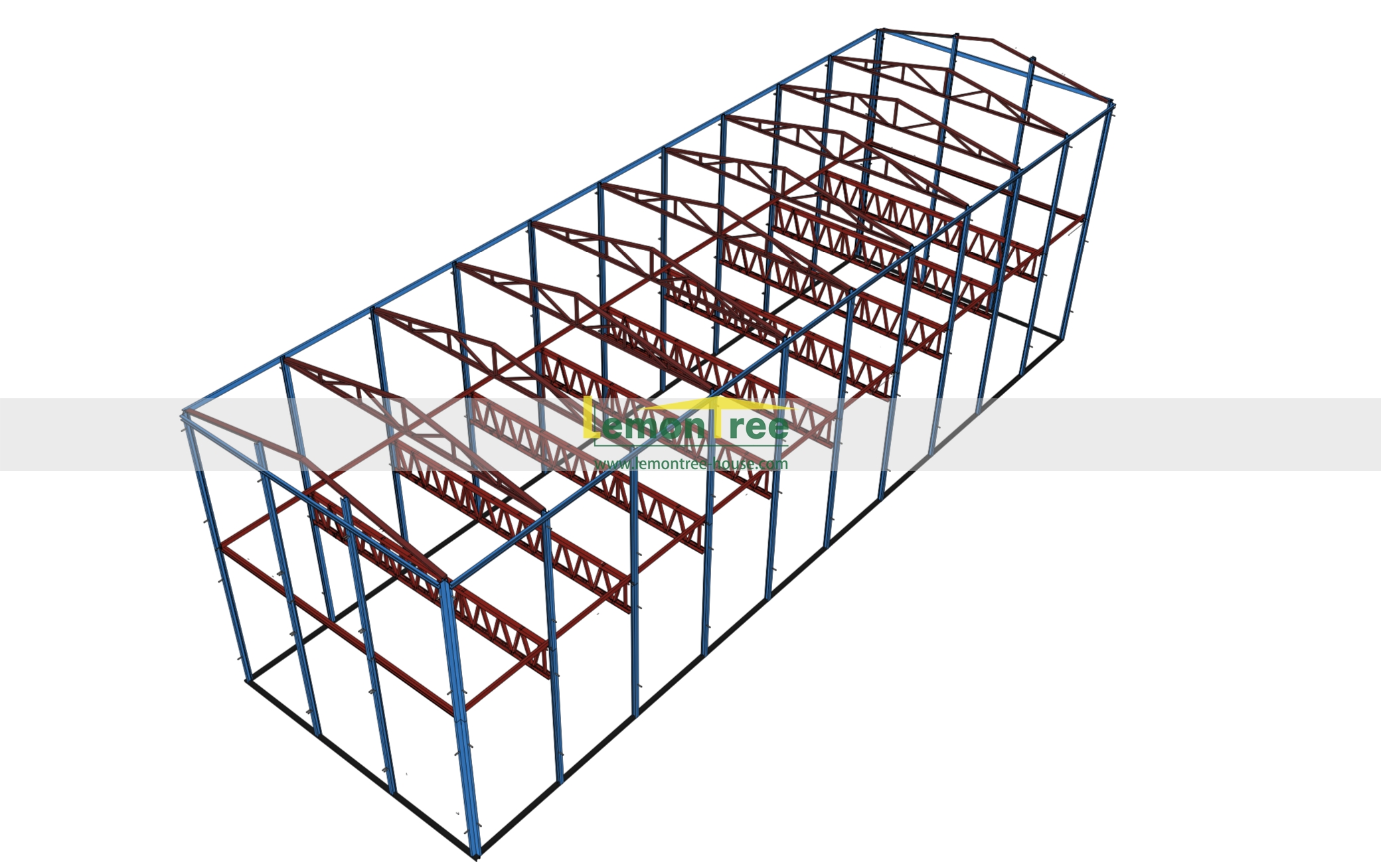

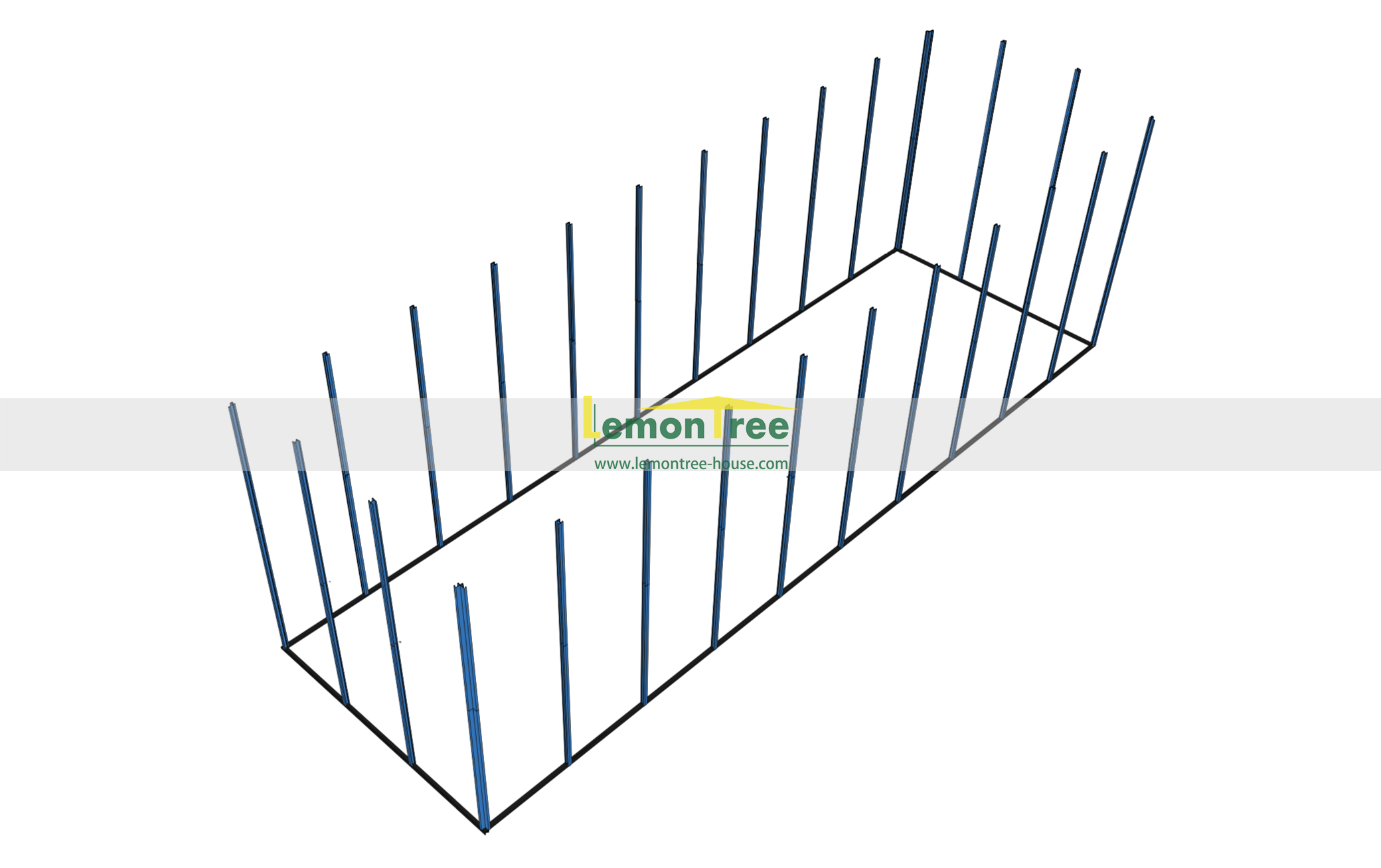

   1)-Set the foundation as drawing. Place the ground beams & erect the columns.

2)-Install ring beams of the roof & the floor to stable the frame, and then set the floor beams and roof beams.

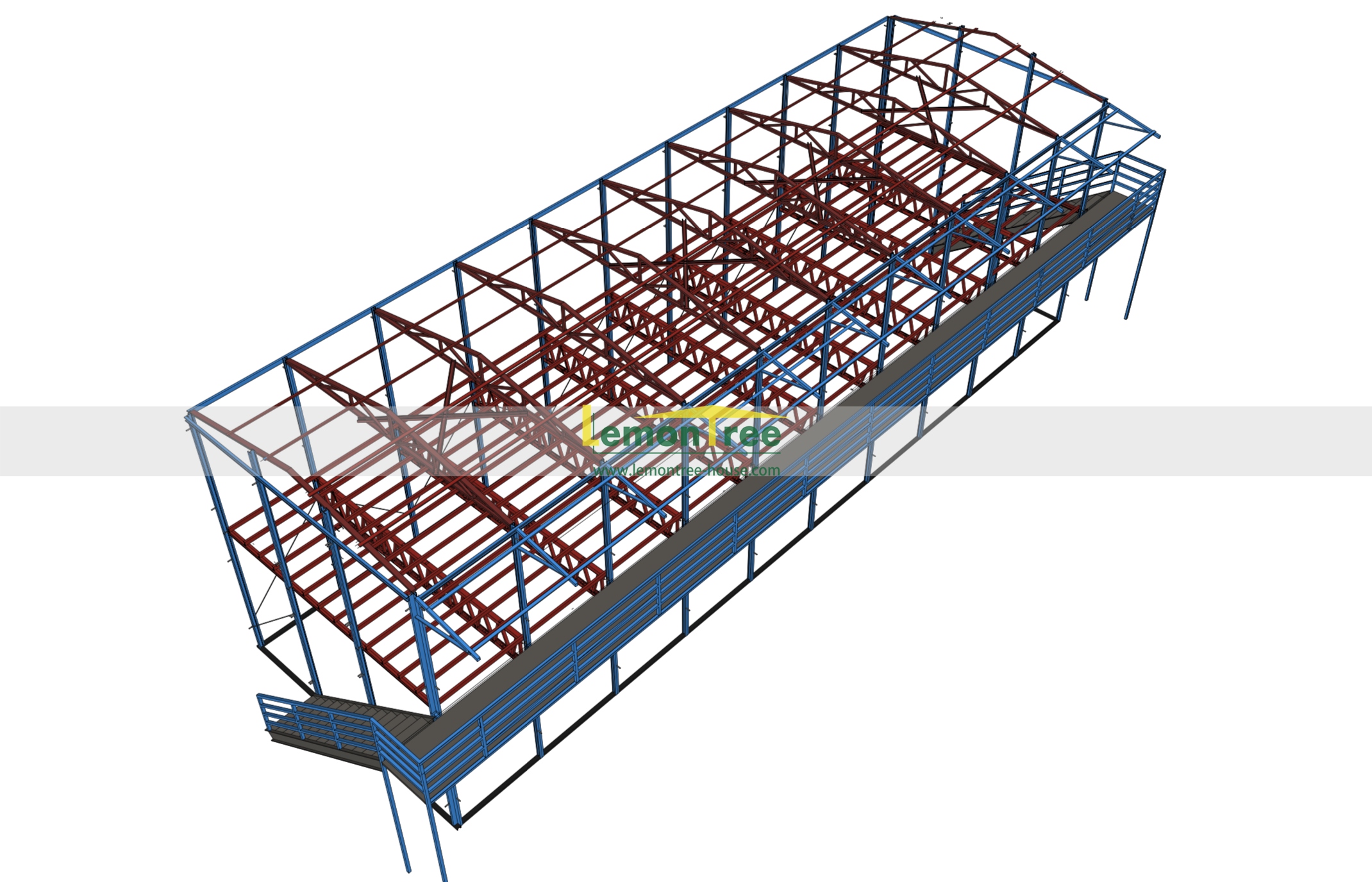

3)- Install the purlins of the floor & the roof, later set the lateral supports to the roof beams.

4)- Install aisle brackets firstly, then for the stair platform brackets, the two staircases of both sides and all of the railings.

5)-Put the aisle boards on and install the canopy bracket & supports.

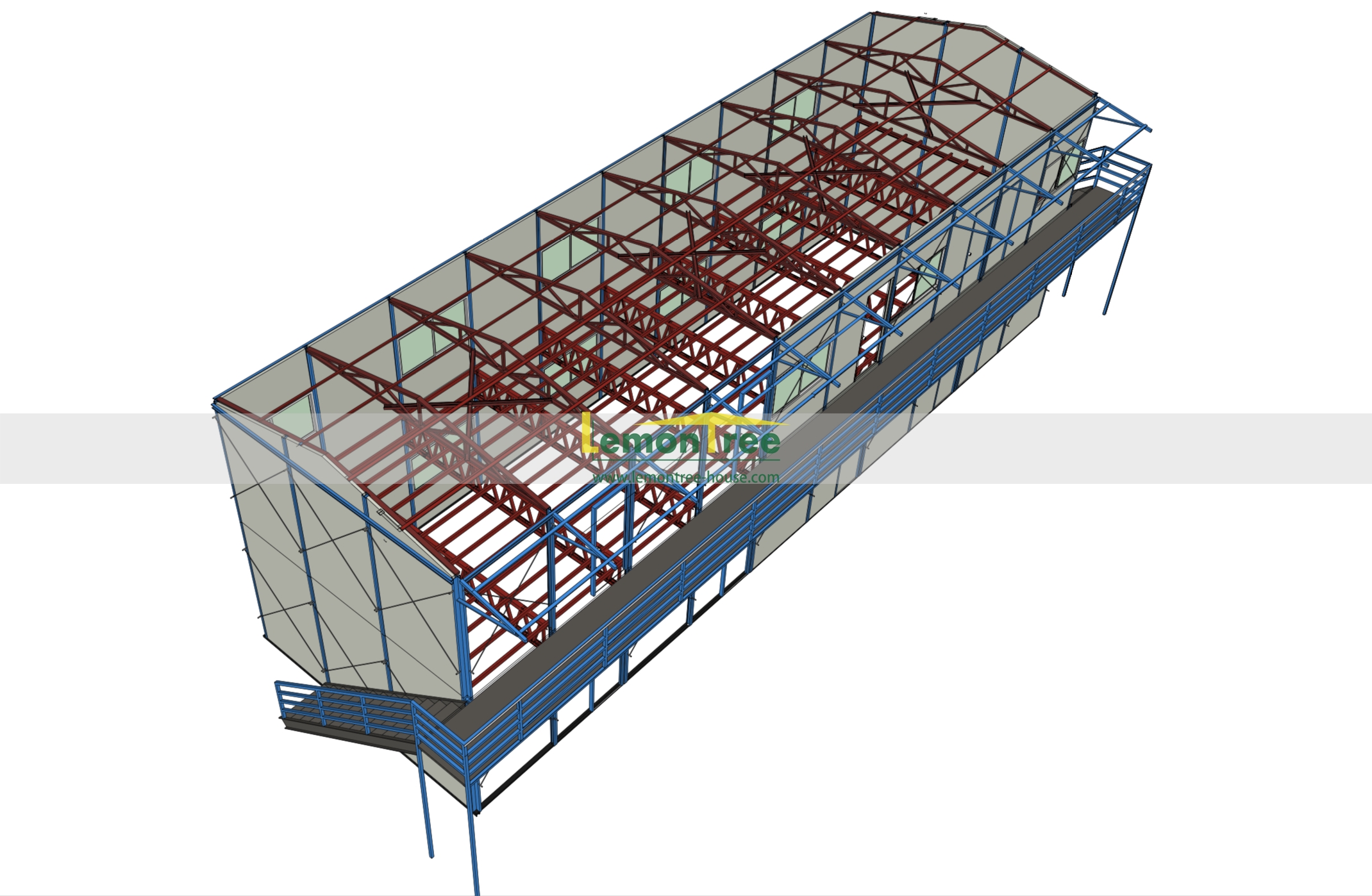

6)-Assemble the door frames, erect the a number parts of sandwich wall panels, doors and windows at the same time. ( Don’t fix all of the wall panels at first, leave some entrance for moving the floor boards into K-house)

7)-Set the floor boards on and finish to fix the rest of wall panels, and later install all of adjustable rods.

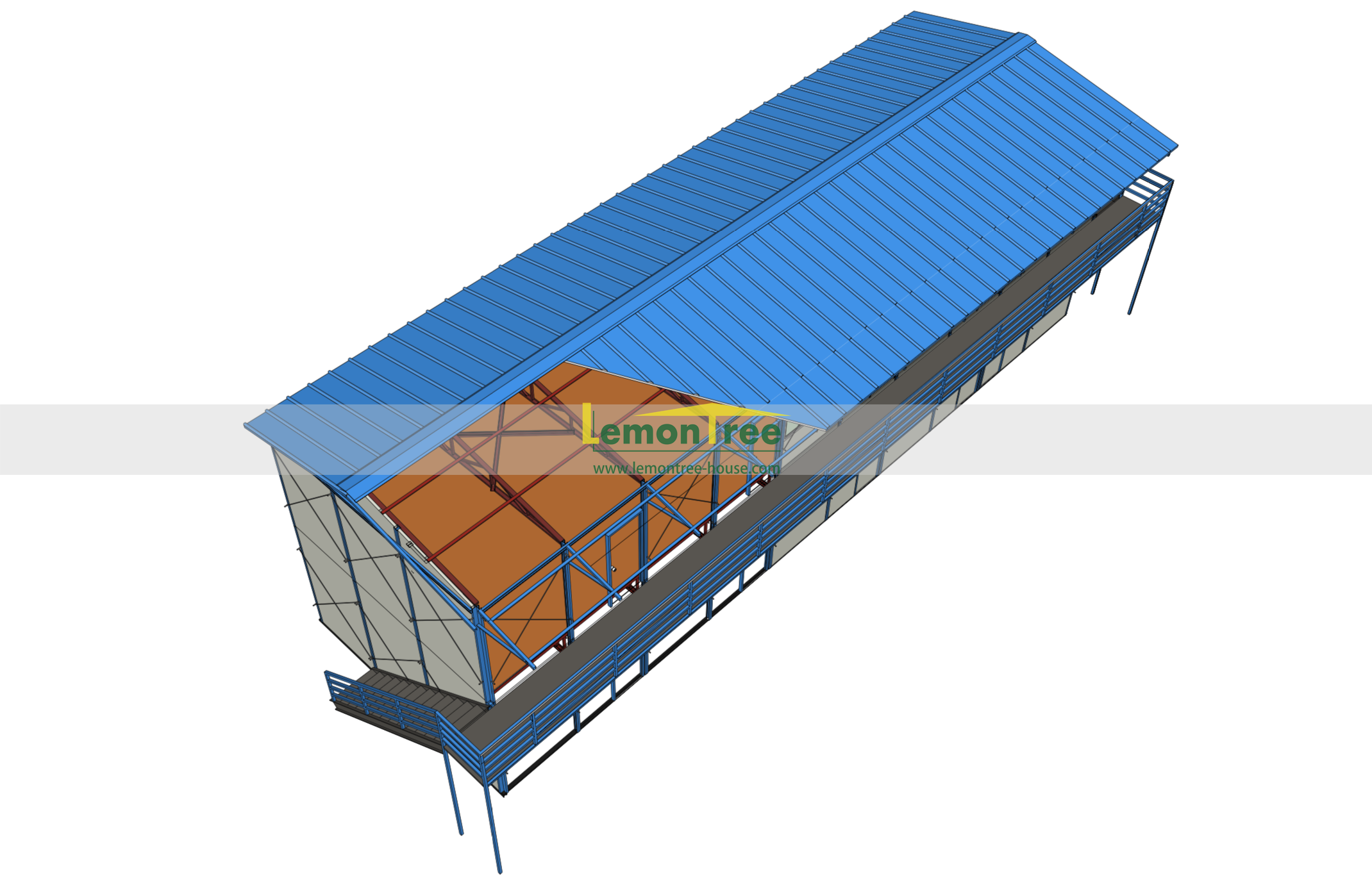

8)-Install the roof tiles, canopy panels, ridge coverings and covered-edges of roof by rivets & glues.

9)-Others installation, such as installing the partition walls, fixed the interior skirting and sealed the gaps by glues.





Download

Here are the catalogs from Lemon Tree, welcome to download them after leave your basic info.

Hope our professional will helpful for yours.
